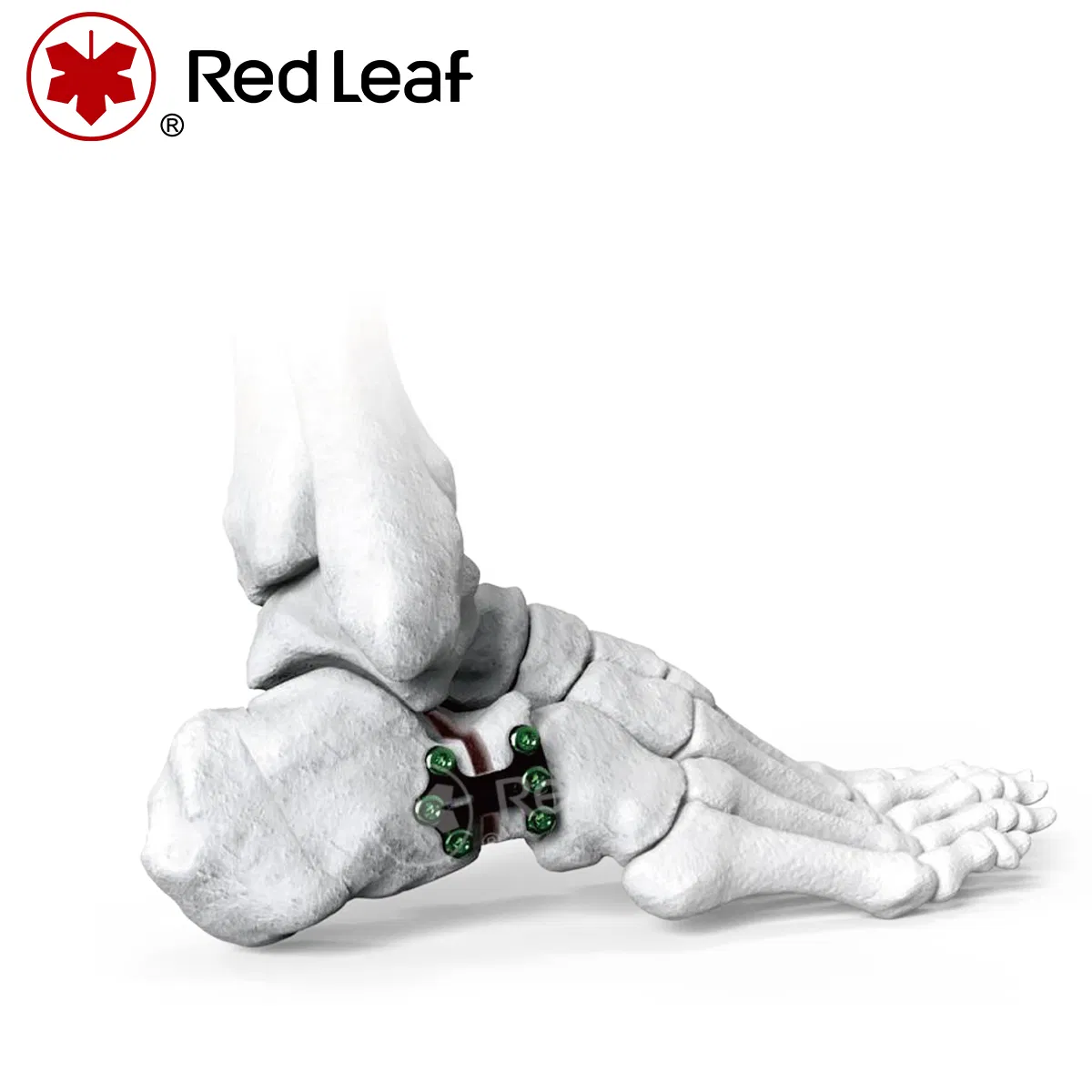

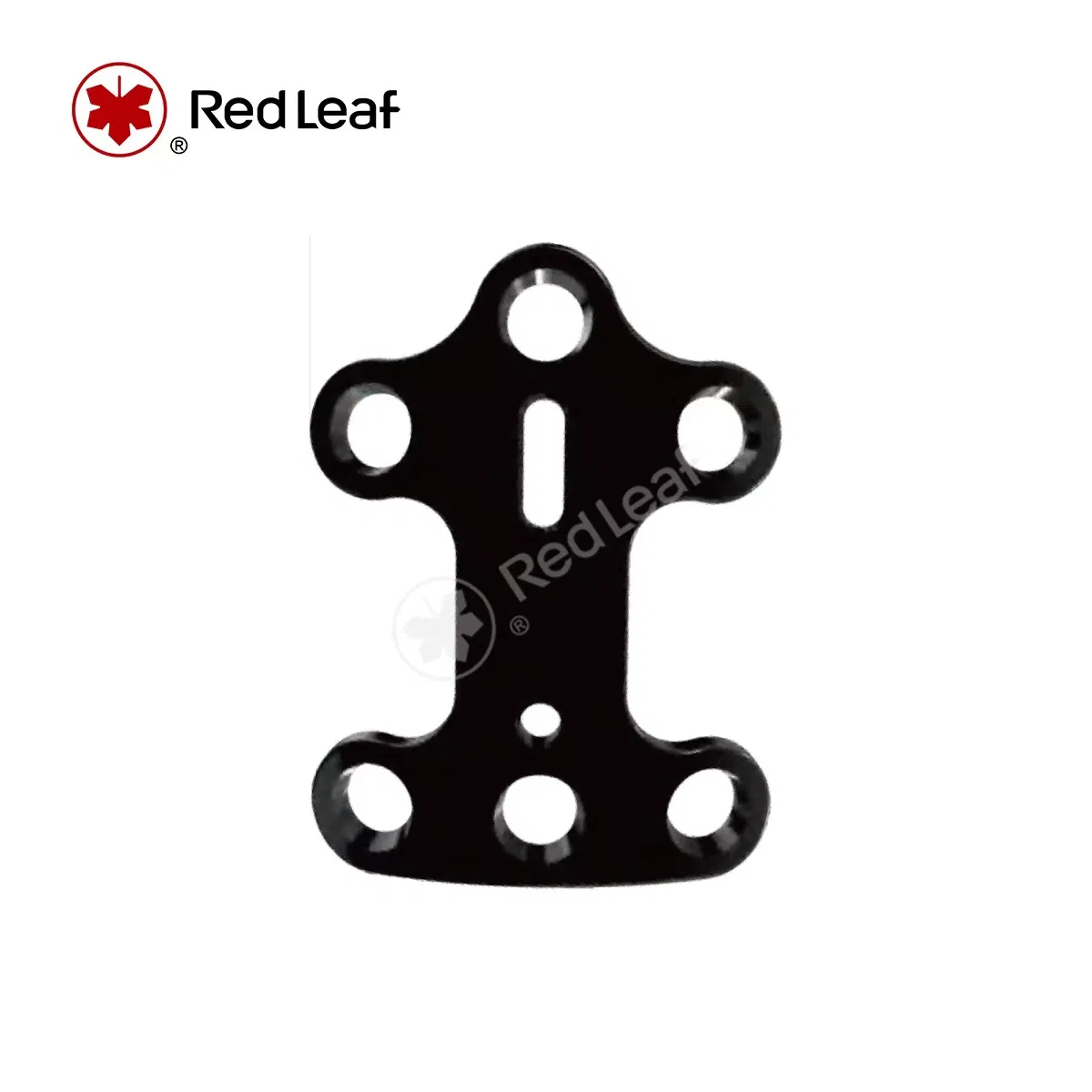

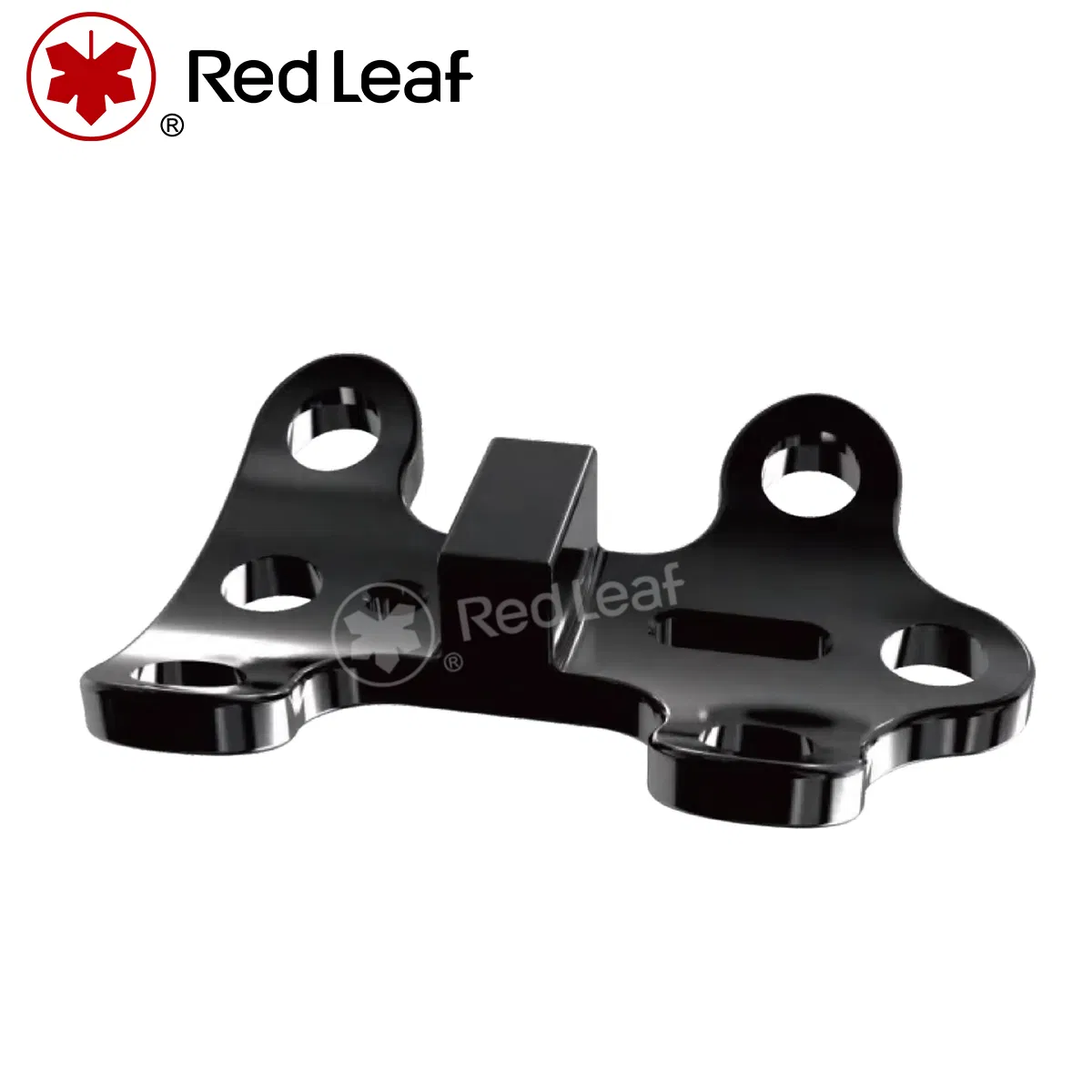

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO. Evans
Usage Correct Deformities, Fracture Fixation
Package Carton
Specification 30x23x2
Origin China
🛠️

Product Description

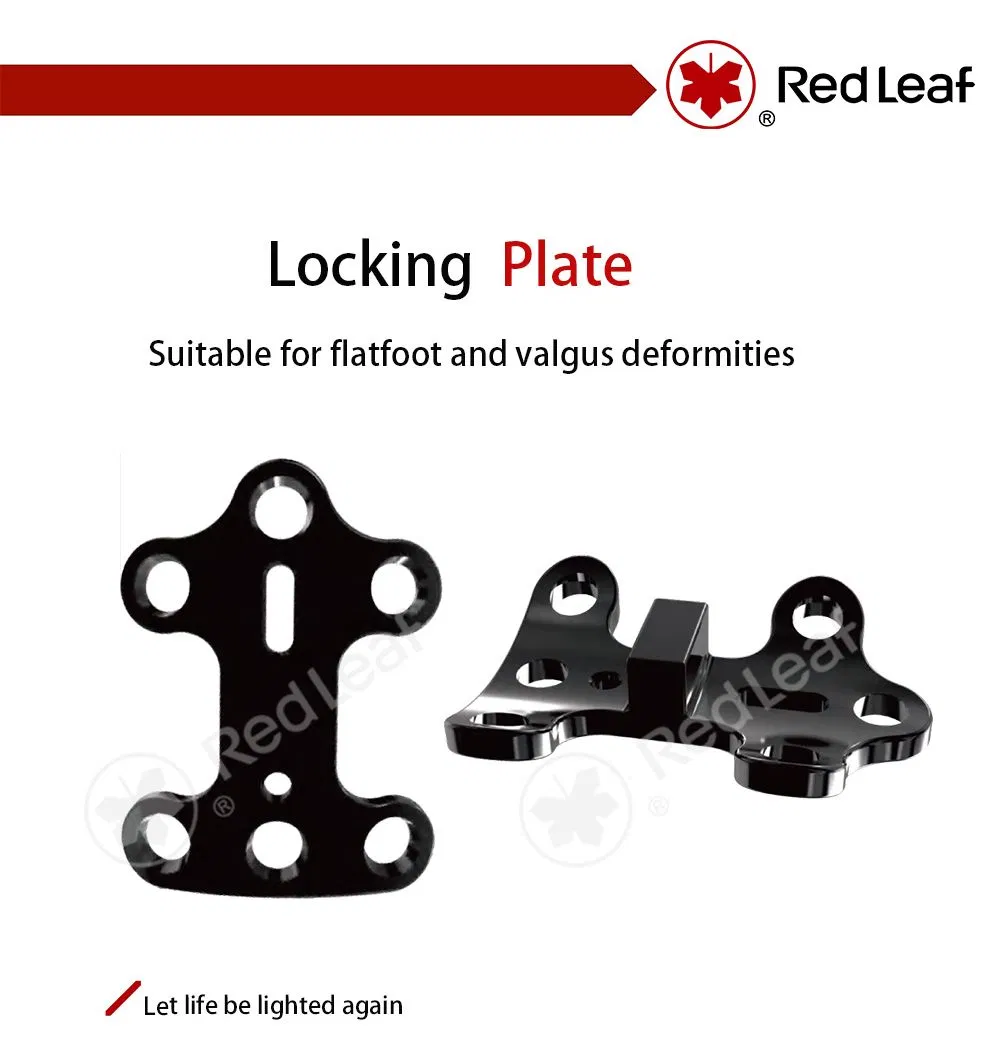

Orthopedic Osteotomy Locking Plate
Design Concept
  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • Maintains distance of 10-15mm between osteotomy surface and calcaneocuboid joint surface
Design Concept Diagram
Key Surgical Points
  • Transverse osteotomy of the calcaneal neck (10-15mm from joint surface)
  • Controlled cutting speed after inner cortex penetration to protect soft tissue
  • Even spreading with parallel openings to facilitate bone ingrowth and prevent non-union
Screw & Material Information
  • Matching Screw: 3.5mm self-tapping locking screw
  • Available Lengths: 6-40mm (2mm increments)
  • Kirschner Wire: 1.9mm
  • Material: TC4 Titanium Alloy
📊

Product Parameters

Specifications Length Width Thickness Step Width Cushion Block Height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Plate Specifications 1
Plate Specifications 2
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
❓

Frequently Asked Questions

1. What is the primary clinical use for this locking plate? The system is specifically designed for the correction of flatfoot and valgus deformities through transverse osteotomy of the calcaneal neck.
2. What material are the orthopedic plates and screws made of? All components are manufactured from high-grade TC4 titanium alloy, ensuring excellent biocompatibility and strength.
3. What types of screws are compatible with this system? The system uses 3.5mm self-tapping locking screws, available in lengths ranging from 6mm to 40mm.
4. How do I choose the right plate size for a patient? Plates are available in Small (26mm), Middle (30mm), and Big (36mm) specifications, with varying cushion block heights to accommodate different anatomical needs.
5. What quality certifications do your orthopedic products hold? Our products are manufactured under strict quality controls and hold certifications such as CE, FDA, ISO9001, ISO13485, and EN1865.
6. What is the typical lead time for orders? Production and delivery normally take between 15 to 25 days after the confirmation of the order and deposit.
